hot sale 1-5t/h biomass briquette machine pressed sawdust with high density
Product Description

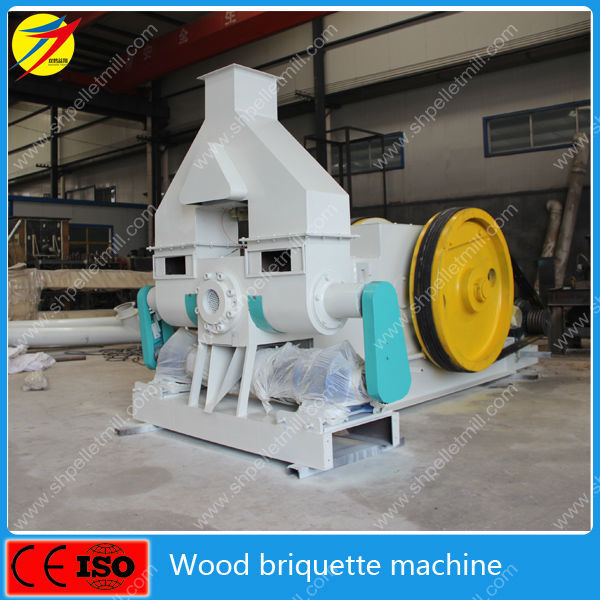

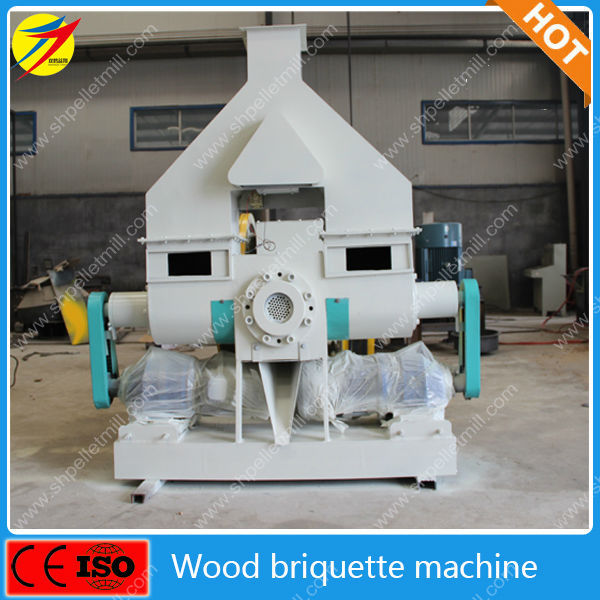

♣ Ram-type Wood Briquette Making Machine not only can produce wood briquette,but also can produce wood pellet 8 or 10mm, and has advantage of unique design, easy operation, low consumption but high efficiency,because the wearing parts (Die) cost very low,so production cost very low.
♣The Raw Materials of Ram-type Wood Briquette Making Machine :
Crop stalks (including cornstalks cotton stalks ),grain shell(rice husk ) ,peanut shell and stalks, cotton stalks, sawdust,branch,bark ,bamboo powder, furfural residue(could be mixed used), Wood scraps, Forest harvesting slash, household refuse,scraps produced by paper making factory, all of these could be smashed and briquetting.
♣ Ram-type Wood Briquette Making Machine Main Technical Parameters:
| Ram Type Wood Briquette Machine | |
| Main Power | Main Power 45kw,Total 60.35KW |
| Frequency Conversion Screw Conveyor | 1.5kw*2pcs |
| Sawdust Distributor | 0.25kw(Single-phase) |
| Left and Right feeding conveyor | 5.5kw*2pcs |
| Oil Pump | 1.1kw |
| Electric Control Cabinet | 1 pcs |
| Production Capacity | 0.8-1.5T/h |
| Final Briquette or Wood Pellet Diameter | 8,10,22,30,40,50,60,70,80,85mm |
| Density of Briquette or Wood Pellet | 1-1.3g/CM3 |
| Feeding Raw Materials Size | Less than or equal to 30mm |
| Raw Materials Moisture Content | 10-20% |
| Density of Briquette or Wood Pellet | 1-1.3g/CM3 |
| Briquette Moisture Content | Less than or equal to 12% |
| Machine Size(L*W*H) | 3.4*2*1.8M |
| Machine Weight | Total weight 8Ton |
| Wearing Parts Die Life | 100-400Hour,Low Price |
♣ Working Priciple of Ram-type Wood Briquette Making Machine:
1.The machine get reciprocating motion by pulley driven by eccentric wheel, and then the feeder machine will start to feeding.
2.Then the raw material go through distributor to get into the feeding box on the briquetting machine;
3.The next step is from feeding box to molding machine by the appending machine from two sides .
Under the pressure caused by punch and molding die ,the raw material become heating up and softened ,and the volume become smaller. Then the raw material get solid and being extruded by molding die with reducing taper due to repeated impact .
4.Pellet shaping process is effected by pressure and temperature ,so the operation principle is punch principle,the machine carry punch 280 times /min when it works normally. The pressure will up to 300T and the temperature is 150-200°C, so the equipment could be used widely for so many kinds of raw material and enjoying a excellent forming density. 5.In addition ,all parts of the equipment lubricated forced by the Oil pump lubrication system to ensure the equipments enjoy a longer service time.
Spare parts:

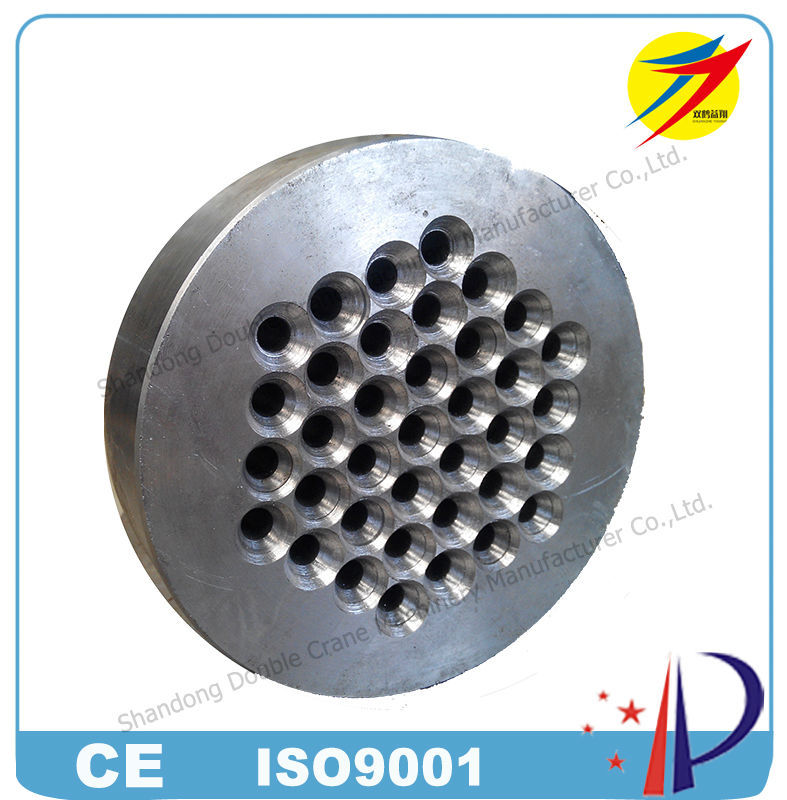

Stainless steel ring die(the pore can be adjusted based on clients' specific requirements).
Raw materials:
The materials can be wood sawdust, wood shavings, wood chips, wood logs, straw, hard wood, rice husk, sunflower husk, peanut shell, branch, trunk, bark and other wood waste; a variety of crop stalk; rubber; cement, ash and other chemical materials.
The materials can be wood sawdust, wood shavings, wood chips, wood logs, straw, hard wood, rice husk, sunflower husk, peanut shell, branch, trunk, bark and other wood waste; a variety of crop stalk; rubber; cement, ash and other chemical materials.

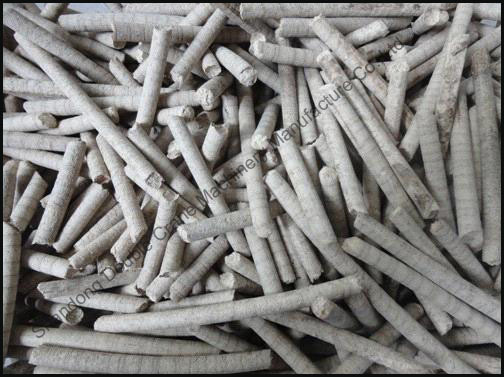

Finished products:
FAQ
> Frequently Asked Question:
1. What is your raw material for making wood pellet or wood briquette?
Reply: Dryed Sawdust or shaving.
2. What is the size of your raw material? Especially the max feeding diameter (mm)?
2. What is the size of your raw material? Especially the max feeding diameter (mm)?
Reply:Size can be 3-30mm.
3. What is the moisture content of your raw material?
3. What is the moisture content of your raw material?
Reply:Moisure about 15%,must less 20%.
4. What is the capcity do you need (kg/h)?
4. What is the capcity do you need (kg/h)?
Reply:Our company can supply equipment or production line capacity from 0.1-20T/H
5. What is the final pellet size(length and diameter) do you need (mm)?
Reply:Wood Pellet diameter general 8mm, wood briquette diameter 8,10,22,30,40,50,60,70,80,85mm,
5. What is the final pellet size(length and diameter) do you need (mm)?
Reply:Wood Pellet diameter general 8mm, wood briquette diameter 8,10,22,30,40,50,60,70,80,85mm,
length can control by adjust the pellet cutter.
