Product description

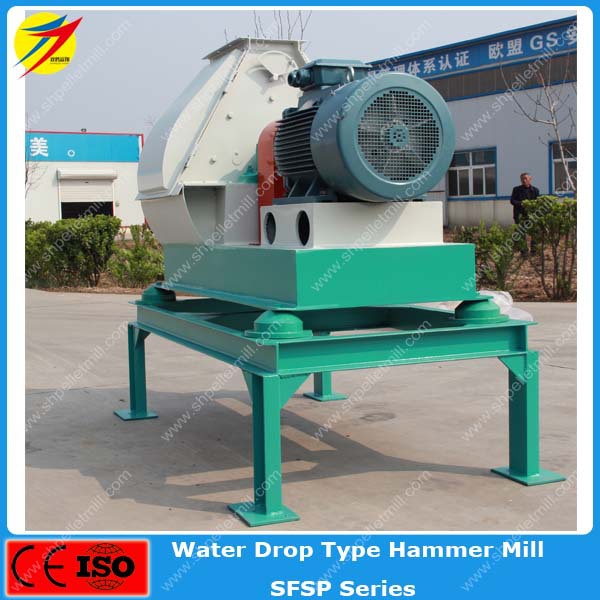

Water drop type hammer mill grinder is one kind of advanced technology hammer mill, which consists of feed inlet , hammers, screen, rod and rotor. The hammers swing on the central rotor freely .The rotor spins at a high speed while material is sent into a feed hopper. The material is impacted by hammers and is thereby grinded and then falling through the mesh and the discharging port. It is widely used in foodstuff , chemical , fiber and other granular materials.
Water drop type hammer mill grinder is one kind of advanced technology hammer mill, which consists of feed inlet , hammers, screen, rod and rotor. The hammers swing on the central rotor freely .The rotor spins at a high speed while material is sent into a feed hopper. The material is impacted by hammers and is thereby grinded and then falling through the mesh and the discharging port. It is widely used in foodstuff , chemical , fiber and other granular materials.
1.Feature and advantage
1). Adopting international advanced technique, crush room is designed as water drop figure. With special twice crush design, the output can be increased by 25%.With adjustable hammer screen space and optimized arrange of hammer pieces, it can fully to meet the coarse and fire crushing requirements.
2). With full open operating door, screen is tensioned outside and can be maintained and replaced easily.
3). Safe and environmental, inset seal avoids the dust from overflowing and improve the work conditions.
4). Tested by the high precision balancing machine, the hammer mill won't move a bit when it run, which reduces noise and prolongs motor bearing's life.
5). Feeding with speed governing feeder, feeder with belt transport or self-scavenging impeller feeder.
2. Technical parameter
Name
|
Model
|
Power(kw)
|
Capacity(t/h)
|
Size(m)
|
Weight(kg)
|
Hammer qty
|
Water drop
hammer mill
|
SFSP 65*27
|
22
|
1-2
|
1.4*0.9*1.2
|
800
|
32pcs
|
SFSP 56*40
|
37
|
3-5
|
1.5*0.9*1
|
800
|
48pcs
| |
SFSP 60*60
|
55
|
4-10
|
1.95*0.9*1.03
|
1500
|
70pcs
| |
75
|
4-12
| |||||
SFSP 60*80
|
90
|
5-15
|
2.2*0.9*1.1
|
1800
|
90pcs
|
3. Application
This water drop type hammer mill group is the an ideal crushing equipment of animal feed, poultry feed, animal food, chemical pharmaceutical, corn, sorghum, wheat, soybeans, peanuts, grain , legumes , particle feed, rice husk (water drop type hammer mill also can crush wood chips).Widely used in large and medium-sized feed factories to produce high-grade poultry feed, aquatic feed and to crush particles in alcohol plants, citric acid plants and food factories.
This water drop type hammer mill group is the an ideal crushing equipment of animal feed, poultry feed, animal food, chemical pharmaceutical, corn, sorghum, wheat, soybeans, peanuts, grain , legumes , particle feed, rice husk (water drop type hammer mill also can crush wood chips).Widely used in large and medium-sized feed factories to produce high-grade poultry feed, aquatic feed and to crush particles in alcohol plants, citric acid plants and food factories.
Water drop hammer mill generally work together with the cyclone, fan and airclock to form powder group. It plays an very important part in animal feed pellet production line.
4.Raw materials
5.finished product
5.finished product
6. Main parts

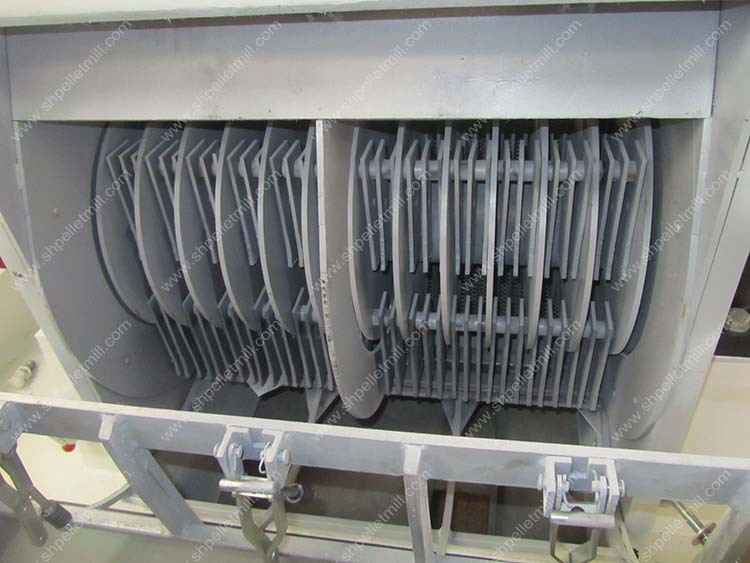

Hammer

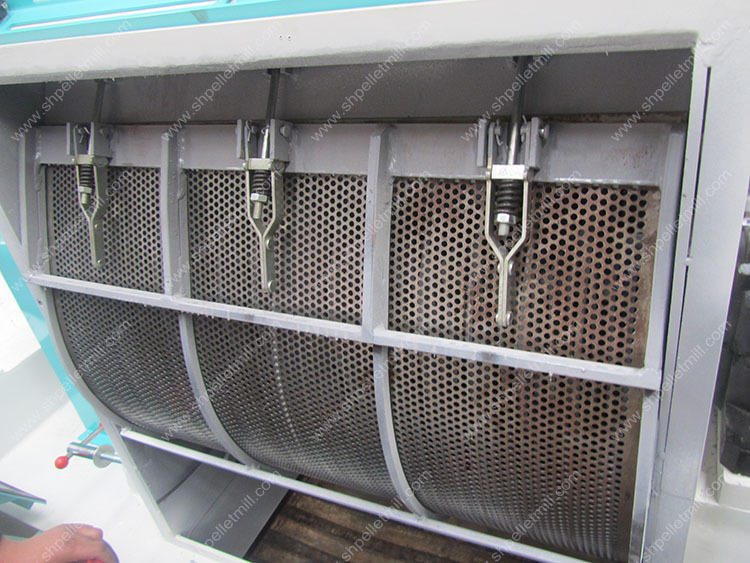

Mesh(We can customize the mesh size based on the special needs of the customers).
Packing and Shipping
Product Certification
Company Information
Shandong Double Crane Machinery Manufacture Co., Ltd. was established in 2009 and is located in Le-ling city, Shandong Province. We are dedicated to the development and production of feed equipment, biomass energy equipment and organic fertilizer equipment. Our company employs 150 skillful personnel. Therefore, we can easily meet your requirements. Thanks to our powerful distribution network, our products are popular with customers in many countries. With rapid development, we have passed CE, SGS and ISO9001 certifications and won many honorary titles. To learn more about what we can do for you, contact us anytime. We look forward to establishing a good and long-term business relationship with you.
Our Service
1.We devote to all-round service of all the products from shipment to maintenance.
2.Our professional service include: free training, guidance, onsite installation, and debugging.
3.After selling, we provide the warranty of two years and free technical guidance and spares parts supply.
4.If your equipments have any problems, we will help you to solve online or onsite in time.
FAQ
1. Q: Are you a trading company or a manufacturer?
A: We are a manufacturer, which has almost 10 years of experience in this industry and be able to offer you the best price.
2. Q: How can I get to your company?
A: You can get a flight to Jinan Airport. We are just about 1hour away from Jinan Airport.
3. Q: How long is your warranty period?
A: One Year (Calculated from the equipment arrives the customer’s side).
4. Q: Will you send engineers to install the plant?
A: yes, but at an extra cost payable by the customer. Or you can get local contractors to do the commissioning and we send one supervising engineer.
5. Q: Have you sold your products to Europe?
A: Yes, We have designed and installed more than 1000 turnkey pellet lines. Many of our customers are from Europe, including Latvia, France, Greece, Romania, Lithuania, etc.
Welcome to visit our website http://www.shpelletmill.com.
